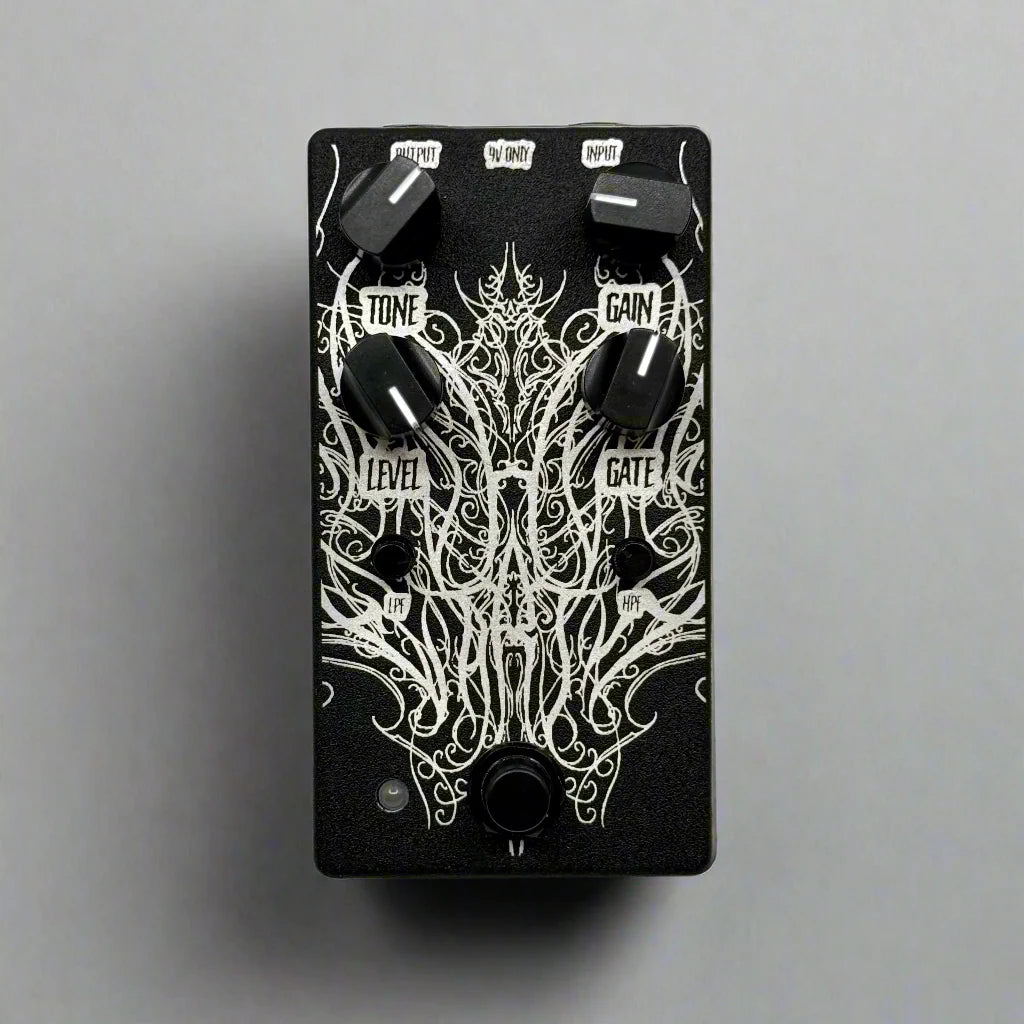

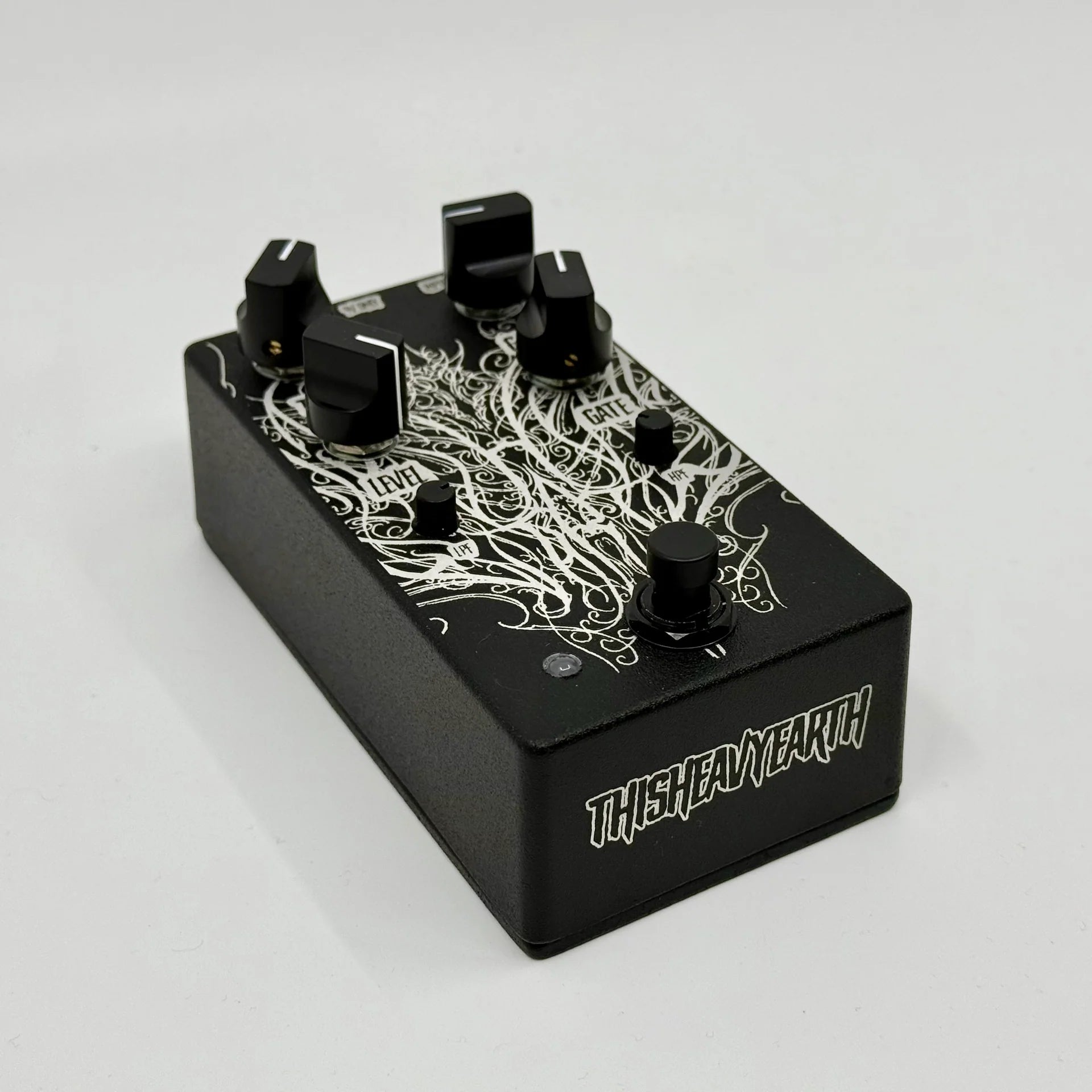

NEW ThisHeavyEarth Overdrive

This is part of our series of powder coated and laser etched in-house limited run builds.

808 at the core mixed with our Spectral Gate noise control.
Pre-gain HPF control, post-gain LPF, LED clipping, and tons of output level.

We really need to get around to giving this pedal a proper name.

Controls:

• Level - More on tap than the stock 808. This is your standard volume attenuator that allows you to set from unity or below unity, or crank it up for a boosted signal.
• HPF - Pre-gain high pass to tighten up the low end.
• LPF - Smooth out the high end of the gain output.
• Tone - Adjust the amount of mid hump. This is the classic Tone control and it alters the tone before going into the 2 band EQ.
• Gain - More on tap than the stock 808.
• Gate - Controls the gate sensitivity.
• Shift (internal trim pot) - Controls the range of the Threshold control.

Power Specifications

9VDC ONLY - CENTER NEGATIVE
This product contains internal circuitry to increase the 9VDC supply to higher voltages for additional headroom.

Switching System

TRUE BYPASS
Soft click (1.1KGf) mechanical 3PDT
