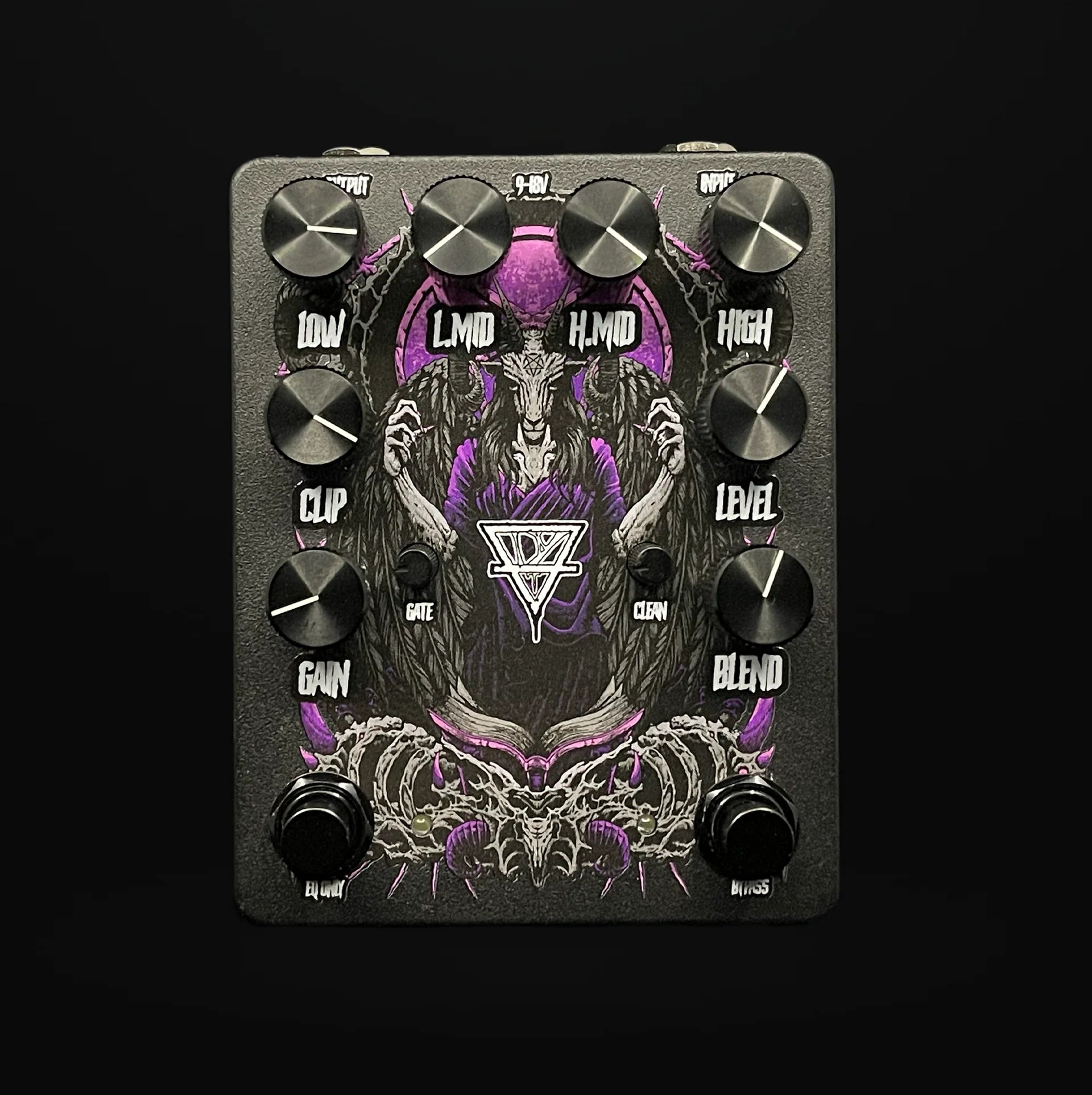

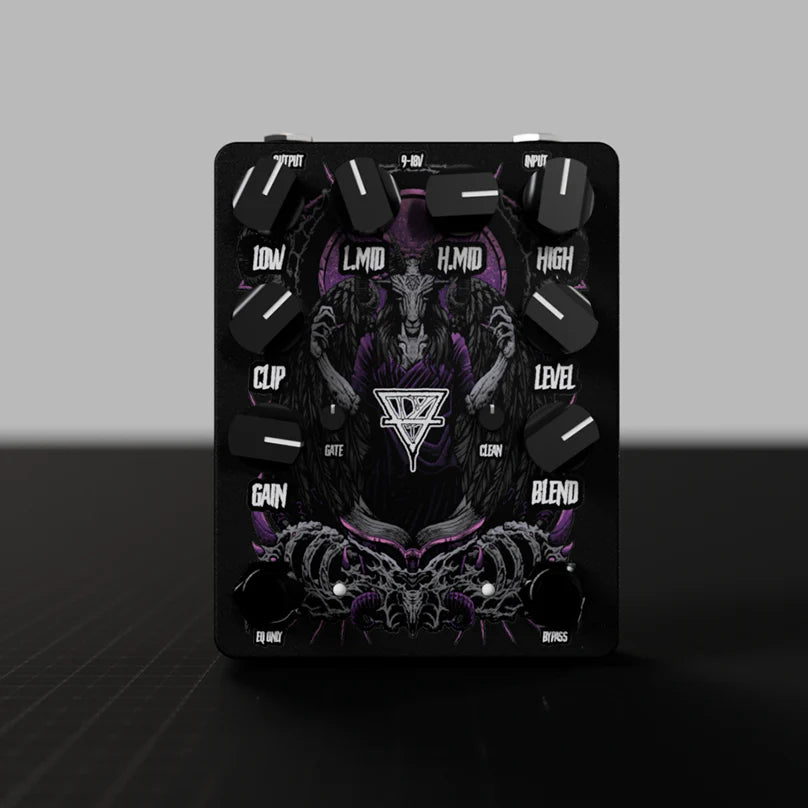

NEW ThisHeavyEarth Crustifixion v2

What has become a flagship build of ours meets it's next evolution.

My goal was to bring back one of my favorite features, the Low Mid EQ control as well as allow for additional control over more aspects of the circuit allowing you to dial in just the right flavor of HM2 style chainsaw for your sound.

Controls:

• Level - Controls the output volume.

• Blend - Mix between 100% buffered dry signal and 100% wet signal to bring back the dynamics of your clean signal.
• Clean - Adjust the amount of gain on the dry signal side of the blend.
• Gain - Controls the amount of distortion.
• High - Cut/boost the treble frequencies.
• Mid - Cut/boost the high mid frequencies.
• L. Mid - Cut/boost the low mid frequencies.
• Low - Cut/boost the bass frequencies.
• Clip - Adjust the amount of hard clipping saturation.
• EQ Only - Toggle between the HM2 gain and a clean buffer to use the pedal as just an EQ platform.
• Gate - Adjust the threshold of the coring circuit diodes for noise reduction.
• Frequency Center Shift (internal trim pot) - Sweep the center frequency of each EQ band individually. M.Q adjust the Q width of the Mid Frequency.
• Bypass LED Brightness (internal trim pot) - Adjust overall brightness of front LED.

Power Specifications

9-18VDC - CENTER NEGATIVE
9v for real nasty, 12v for the OG sound, 18v for smoother and higher headeoom. 18v recommended if youre normally running EQ Only.

CONSUMPTION
17mA

Switching System
